POST 34 - CONVERSION TO HYDRAULIC CLUTCH - OR NOT

Hydraulic - V - Mechanical Clutch Operation

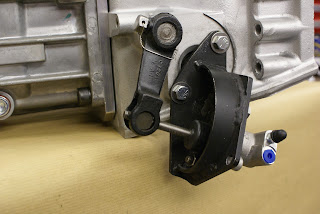

I had every intention of converting the clutch from mechanical to hydraulic operation and to that end purchased a 150 slave cylinder with mounting bracket. The bracket did not exactly fit the 120 bell housing and required a fair bit of fettling to get the push rod moving at something like the correct angles when moving the clutch operating lever. It did eventually all line up reasonably well but looked like a bodge, as if it was never meant to be there.

This just doesn't look right

To resolve the master cylinder issue, I had considered fitting a complete new pedal box but at 5 foot 8 inches tall, and with bucket seats fitted, the original pedal location, for me, should be just about right.  The current trend to move the pedals forward a couple of inches, which a new pedal box would allow, might increase the cars future saleability.  (I remember reading somewhere that tall men are generally richer than short men).  Having to put blocks on the pedals as my dad did on my first bike seems like a naff idea, and I am after all building this car for me.
So, having acquired a likely master cylinder some time back, I set about looking at how to best utilise it in conjunction with the existing pedal arrangement.  With the new slave cylinder fitted, there is no longer a place for the end of the clutch operating shaft.  This can possibly be resolved by making up a substantial plate with some form of bearing for the remote end of the cut down shaft.  Also, the operating lever will need to be relocated with a new key way machined into the shaft and the chassis will need some holes drilled to attach the plate.  It's all getting horribly complicated.

Time to ask the obvious question.

Why exactly do I want to operate the clutch hydraulically?
Whilst the mechanical arrangement has lots of parts, it is in fact reassuringly simple with very little if anything that could fail catastrophically.

As usual with Jaguar design, many parts make up the clutch
operating mechanism.  Note washer in bottom right hand
corner and see "whats that clicking noise" below.

My 140 has exactly the same arrangement and I have never thought it heavy to operate.  With a 9.5 inch E Type pressure plate it will be lighter anyway.  No seals to worry about and no hoses to split.  Nothing to bleed and no fluid to periodically check and top up and wonder where it went.  On the other hand, the idea of having a shaft mounted between one fixed point, the chassis, and one vibrating point, the engine, can not in principle be good.

Very odd ware characteristics on end of clutch shaft, bearing and cup.

Looking at the wear patterns on the bell housing end of the shaft, spherical bronze bearing and cup, it clearly has not had a happy life.  Never the less, it was still working (as far as I could tell) after fifteen years of hard use and neglect and a further forty five years of miserable lonely inactivity.
On balance, it's clear that the right and proper thing to do is to restore it to its original mechanical state, rotating happily in new bronze bushes, carefully lapped into their cups and then lubricated with very best grease that money can buy.    Why did I ever think it a good scheme to usurp this fine piece of engineering with masters, slaves and their vile corrosive hydraulic fluid.  Whilst on a roll so to speak, perhaps I should consider upgrading the braking system with cables, rods and levers!
My good friend Richard Cook who fortunately understands my passion for such things, machines the badly worn end of the shaft and fits a sleeve making it as good as new.  Medical science has some catching up to do.

Resplendent with new sleeve, bush and cup.  What more could
an original clutch operating shaft want?

So I guess the only remaining question is :
Is there anyone out there who would like to buy a brand new Tilton 74-700  7/10" Master cylinder kit complete with remote mounting kit, hoses and clips and an XK150 slave cylinder with slightly butchered mounting bracket.

Mr Happy Shaft back home and back in employment.

Tilton Master Cylinder - Heading for EBay

Whats that clicking noise?
Pushing the clutch pedal on my 140 would often but not always produce a light clicking noise which could be felt through the pedal. As it came and went, I was never too concerned.  Last winter I decided to investigate and removed the whole clutch shaft assembly, cleaned it, replaced the bearings, "O" rings etc. and re-assembled it. The result was a satisfying silence. The noise had gone, for about a week, then it re-appeared. With assistance and a listening tube, I established that the noise emanated from inside the chassis. The end of the spring had worn and worked its way into the chassis side, sometimes catching and winding up then twanging free with the shaft motion. It seemed strange that nothing was fitted to the shaft to stop this happening.  About this time I bought Bernard Viarts amazing book - Jaguar XK140 Explored.

Bernard Viarts amazing book on the 140 and a typical drawing.
A 120 edition is hopefully due out later this year

The superb drawing of the clutch shaft assembly, although for a left hand drive car, shows a washer (C3295) between the spring and the chassis.  Definitely not present on my car and very unhelpfully not shown on plate F of my Jaguar parts manual.  I found a suitable washer and did a trial fit.  Removing the shaft to fit the woodruff keys, the washer fell off the end and into the chassis.  My 'magnet on a stick' fished around inside the chassis and was carefully removed with not one, but two washers attached!   It doesn't matter which way you remove the shaft, the washer will most likely fall off into the chassis.  Consequently, you would never know it was ever there, and the parts manual nicely confirms its non existence.

Prop Shaft angle
The new prop shaft to fit the T5 box finally arrived and was fitted, but the angles required by the UJ's to meet the diff seemed a bit severe. The reason of course was that the re-tempered springs are sitting high with very little weight to settle them. I calculate that a full fuel tank, rear part of the body with boot contents and the best part of two passengers would approximate to 200Kg's.
Fortunately I have to hand a pallet of coaxial cable with each 250 Mtr reel weighing about 11Kg. Stacking 18 reels over the axle settles the springs very nicely and makes the prop shaft angles acceptable.

18 reels of coaxial cable approximately equates to the back half
of the body, a full tank of fuel and a couple of big lads.
Springs and prop shaft angle now look about right

Cylinder Head and Gasket - Final solution
Following on from my previous post and the problem of fitting the camshaft sprockets, assuming my calculations are correct, it looks like I will have to settle for a thinner gasket and a compression ratio of 9:1.   Rob Beere supplied another Cometic composite gasket, this time 60 thou, and it all goes back together without a hitch.

Sprockets fit easily to cams with gasket reduced to 60 thou.
Why has the head got this odd double stamped engine number?
See post 10 for the most probable explanation.

It's still a puzzle as to why, with only 18 thou being skimmed of the head the chamber volume was reduced by around 10%.  One possible explanation could be the depth of the new valve seats and the profile of the valve top, but I don't have another head to compare.  Another explanation could just be that my calculations are rubbish.

Could valve seat depth and profile be responsible to reduced chamber volume?

As I intend to use a 123 Ignition set up with programmable advance curves via USB port and lap top, I am hoping that this is all a bit less critical and I will have the opportunity to tweak the timing to accommodate the higher ratio. With 99 octane costing around £1.40 a litre (that's around $8.30 a US Gallon to you hard done by American boys) and not available at many petrol stations, you can see why it would be good to be able to use 95 octane.  I know that the theory says 99 gives you a bigger bang so you should use less of it, but in my experience it seems to make little if any difference.

Miscellany - related topics

Beamish Rally
A couple of weeks after this wonderful day out, I received a phone call from Mr George Jolly, the event organiser to tell me I came first out of around 150 entrants.  Totally unaccustomed to winning anything ever, this came as very nice surprise.  However, the actual credit for the win must go to navigator Tony Firth, who has an encyclopedic knowledge and recall of all things relating to old motors, no doubt giving us a super high score for the quiz part of the rally.

Stuffed again by the weather men.
The biggest classic car event in North East England at Newby Hall near Ripon was cancelled after a "pitch inspection" four days prior to the event.  No doubt the forecast of a further twenty odd hours of heavy rain over the next three days would have played some part in the decision.  Apart from the occasional light shower on Friday, the forecast was around 95% wrong.

Next Post beginning of August

POST 33 - JULY 2012 - PROGRESS 1 - FUN 5

Cylinder Head, Compression Ratios and Gasket Choice

After a few hiccups relating to shims, I finally feel happy with my cylinder head assembly.  The waterways have been welded up and re-machined with 18 thou skimmed off to clean it up.  Inlet and exhaust faces have had a light skim to ensure absolute flatness.  New hardened seats and phosphor bronze guides have been fitted along with stainless steel valves and new springs.  The camshafts were in excellent order and just needed a light clean up and new bearings.  So all in all, a pretty comprehensive head overhall.

Time to decide on the ideal compression ratio and consequent gasket thickness, with a wide range available, from the original 15 thou, all the way up to special order composite items at 130 thou.  First I need to re-establish head chamber volume after machining.  I did this exercise previously by using liquid paraffin, establishing its specific gravity and weighing it on letter scales.  All chambers came out at between 105 and 107cc which I thought a little high but surprisingly the C/R came out about correct at 8:1 on my spread sheet.

This time I did the same exersise using a 100cc burette and water (as I subsequently discovered that the SG of liquid paraffin is not absolute) and they came out at around 95cc.

No more make shift measuring.  A proper burette and a clear DVD
stuck down with a smear of grease.  The head was first set exactly
level to avoid surface tension bubbles under the plastic.

To acheive my ideal 8.5:1 C/R my spread sheet indicated that I required a gasket of around 90 thou and Rob Beere racing had a Cometic 98 thou composite item in stock.

Delivered the following day it was fitted and the head duly torque'd down to 60 foot pounds

PROBLEM

No matter how hard I tried, and how carefully I positioned the tensioner, one or the other sprockets would not go over the end of the camshaft indicating too thick a gasket or too short a chain.   I had, as a matter of course previously checked the chain length against the original with no discernable difference.  The shortfall was nothing more than at most a frustrating millimeter or so, indicating a gasket thickness reduction of half that (as the chain goes around two sprockets) - around 20 thou.  Again consulting my spread sheet, going down to 60 thou would produce a C/R of just over 9:1 not my absolute ideal but easily acceptable.

More on the final outcome in my next post.

Dynalite - an alternator that looks like a dynamo

I spent quite a while researching this and finally concluded that it was a worthwhile upgrade, producing a maximum of 40 amps and wieghing 10 pounds (the original Dynamo wieghs 19).   The alternative was to buy the bracket and pulley plus a cheap scrap-yard alternator.  It would doubtless have saved a considerable sum but the essential pulley only comes as part of an upgrade kit, with no supplier prepared to sell it on its own.

The dimensions of the Dynalite are identical to the dynamo and I added the finishing touch by fixing the original  "Lucas Special Equipment" plate and faux rivets to the body.

Adding the Lucas plate has probably voided the guarantee!

Morgans Diary

Anyone wanting to know what's happening on the Classic Car scene in the North of England buys Morgans Diary in February, which lists pretty comprehensively every event for the year.  It's also used by organisers to avoid clashes with other events.  So how did this super useful publication come about?

Many years ago before the internet, Mr Morgan started to keep a list of dates for Classic Car events, Auto-jumbles etc. in the North of England and word got around that he was the man to ask if you were planning an event or looking for something to do at the weekend.  After a while he formalised his lists into a small printed publication and sold copies, with the proceeds going to charity - Good Bloke.

It's popularity grew to the point where it was almost a full time job for a single individual and Mr Morgan decided he had done his bit and it was time for someone else to take up the reins.

Step up to the plate Tony Raylor and York Vikings Rotary Club - with many volunteer hands to make light work of the job.  Morgans Diary (Now officially called Morgans Guide to Historic and Classic Vehicle Events) has raised to date an amazing £150,000 for charity and recently handed over £10,000 to The Great North Air Ambulance.

For a publicity shot they needed an appropriate Classic car as a link and as I had the time and live reasonably close to Tees valley Airport I was both happy and honoured to oblige.

http://www.morgansyearbook.co.uk/

Rotary Chairman Martin Kirby hands over a Cheque for £10,000
to Great North Air Ambulance Paramedic Dave Allanby

Raby Castle - JDC Area 11
The lack of overall progress in the past two weeks has mainly been down to a very busy schedule of shows and trips with no work taking place over any weekends in June.
June 24th was JDC Area 11's main annual event at Raby Castle.  As an added attraction we decided to take my rolling chassis along.  It created a huge amount of interest and it was gratifying to hear dads explaining to their kids the purpose and function of the various parts, normally covered up.

120 Rolling Chassis on display at Raby Castle  June 24th

Also on display were a couple of couple of cars borrowed from Jaguar Heritage and used in films,
the Mike Myres Union Flag painted "Shaguar" and an XK8 from the Bond Movie, Die Another Day, with a Gatling type gun mounted on the back.

Couldn't miss this photo opportunity

As I wasn't going to get the chassis back until the following Wednesday I took the opportunity to freshen up my workshop and give the floor a coat of paint.

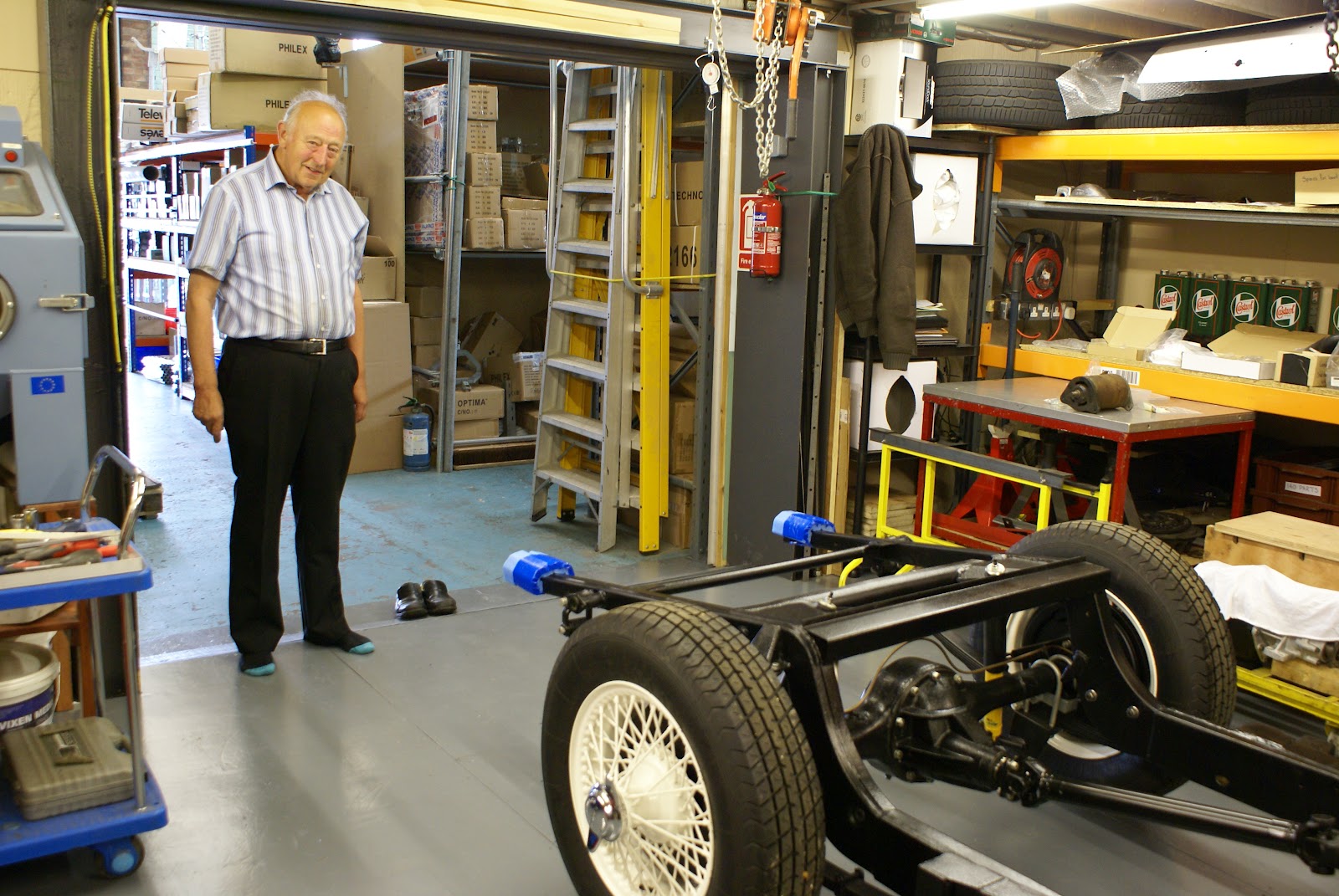

Mr G M wisely removed his shoes before entering.

Safely back home.  Shame about the sheep Sh--- in the tyre treads

The following Saturday JDC organised a visit to the North Yorks Moors Railway Workshops at Grosmont which involved a drive through some of Englands most deserted roads, with fantastic moorland views.   Just as well I forgot to take my camera.  This post would otherwise be never ending with pictures of hills and Steam Trains.

Hob Hole near Westerdale - Superb "exactly as shot" composition
 by Geoff Mansfield with only a few seconds to set up.

Next post mid July
